FUCCELLI SRL
Machinery for the
ceramics industry
CERAMITEC 2026
Fuccelli S.r.l. will be attending the upcoming edition of CERAMITEC 2026.
A6.102
Certified Pre-Owned

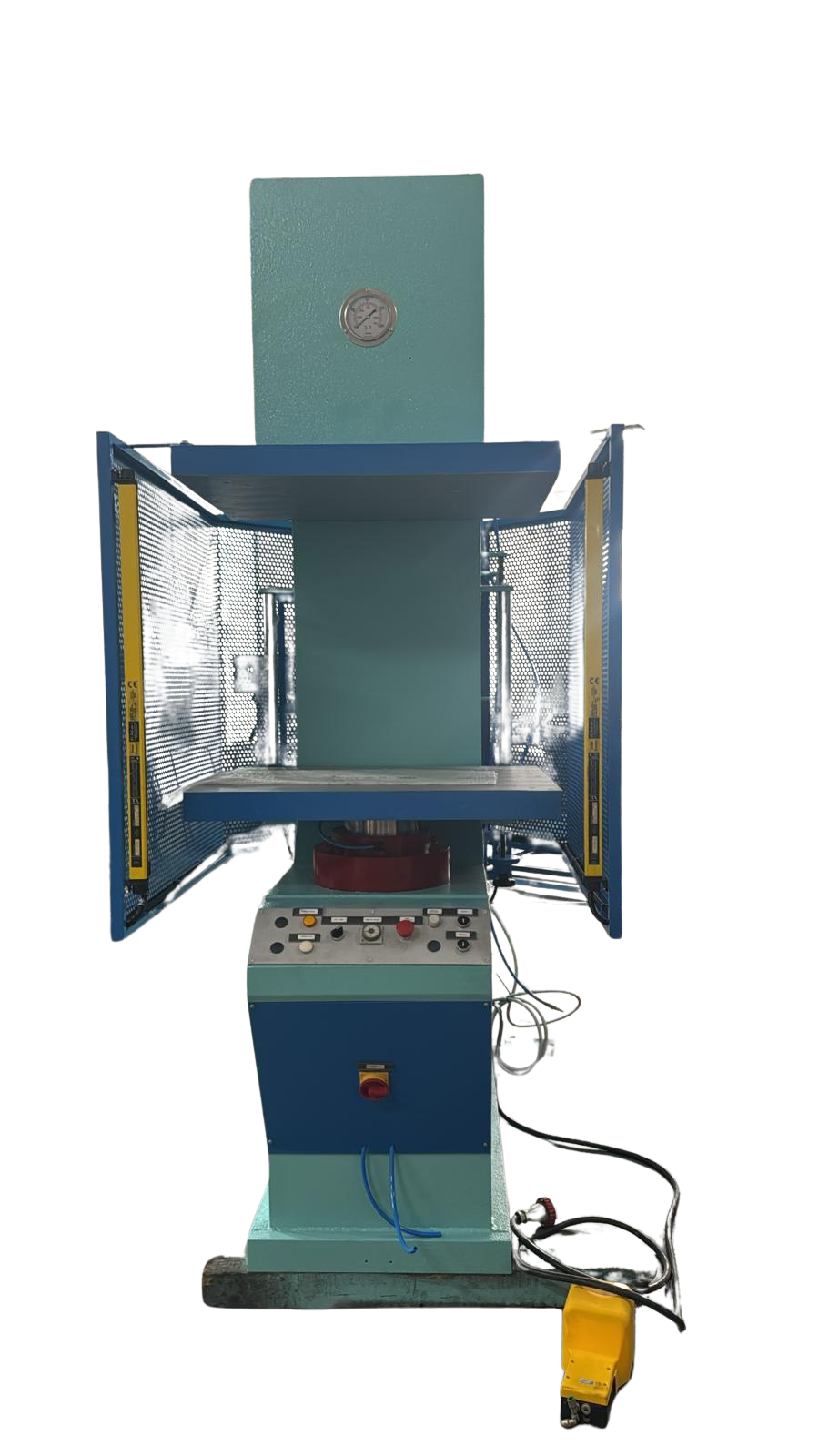

50-Ton Extra-Heavy-Duty Hydraulic Press
Used – Refurbished – 12-month warranty
WHAT'S NEW IN 2025

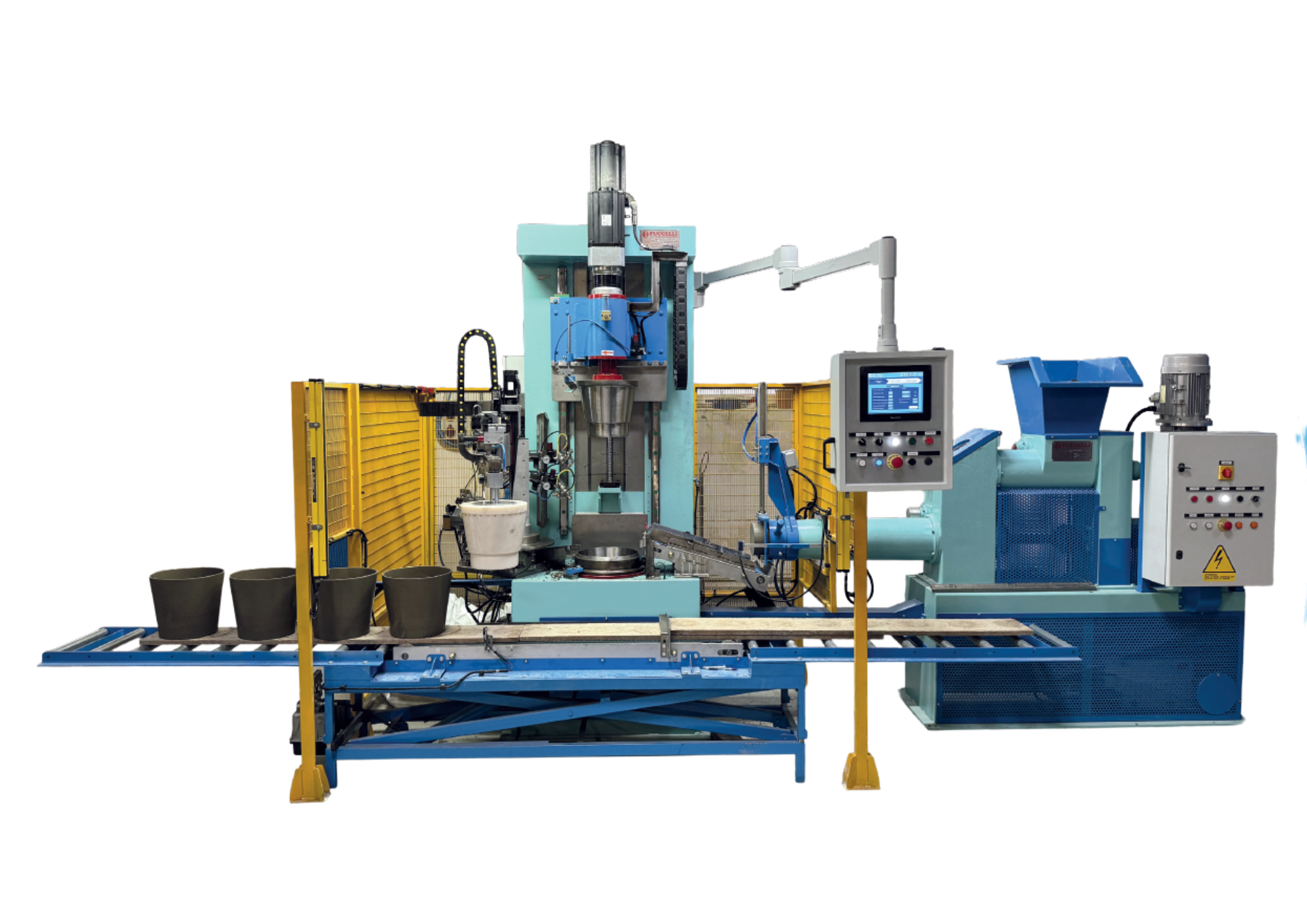

Mechatronics MOD. 300 Automatic Rotary Press – COMPLETE LINE
-
Up and down movement controlled by a ball screw and mounted on a guide rail with slides
-
5.5 kW brushless motor for up and down movement
-
7.5 kW brushless rotary motor
-
Safety barriers
-
Maximum stroke: 1000 mm
-
Production range: 5 cm to 30 cm diameter/height
-
Production capacity: up to 950 pieces per hour.
-
Automatic clay loading via conveyor belt or robotic arm upon request
-
Dual automatic oiling of the mold and clay
-
Automatic piece extraction via suction cup
-
Automatic trimming and finishing of the piece
-
Palletizer for placing the piece on a conveyor belt
-
Electronic control system
-
All machine adjustments are electronic
-
Software adaptable to customer requirements
Work program storage
Clay moisture content: 15%
Type 160 degassing mixer or clay loading conveyorMachine manufactured in accordance with CE regulations

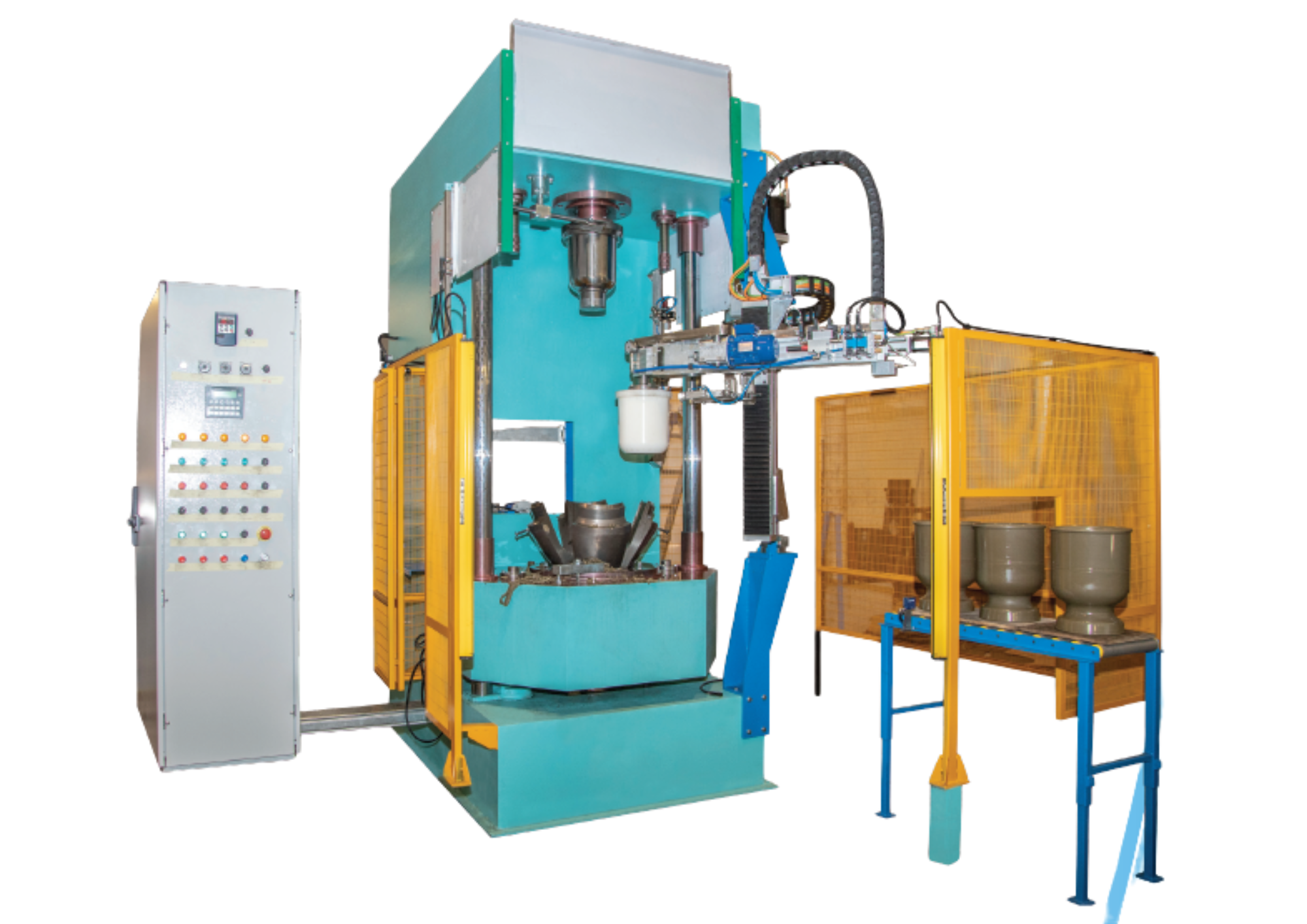

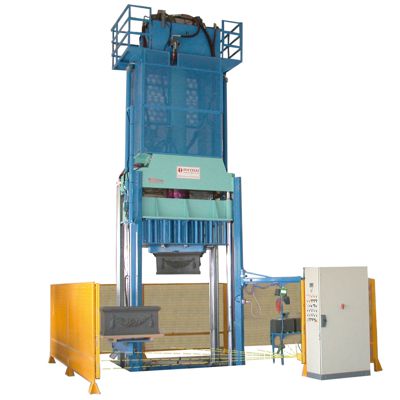

MOD. 500 Automatic Hydraulic Rotary Press
- Motor power: 30 HP
- Inverter-controlled speed variation
- Motor with oil-filled gearbox: 20 HP
- LED speed display
- Production capacity: up to 50×50 cm
- Mold holder diameter: 650 mm (with reducers for 550, 500, 450, 400, 350, and 300 mm)
- Safety barriers
- Productivity from 50 to 200 pieces per hour
- Maximum stroke 1300 mm, working length 1000 mm
- Weight 6000 kg
- Optional: processing with opening of metal molds
- Machine manufactured in accordance with CE standards
- Installation, use, and maintenance manual
- 1 AUTOMATIC EXTRACTOR FOR REMOVING AND CUTTING PIECES
- 1 AUTOMATIC CLAY LOADING SYSTEM (cut pieces must be ready on the conveyor belt)
- 1 x 4000 mm conveyor belt, on which the prepared clay piece must be placed
- Pneumatic cylinder for picking up the clay using a suction cup
- Pneumatic cylinder for inserting the clay into the mold
- Electrical system with PLC control
- No. 01 ELECTRICAL CONTROL PANEL
- The main control panel can operate the entire machine automatically (loading + machine + unloading), or individual functions can be selected or disabled. The loading function can be disabled.
Machinery for the ceramics industry

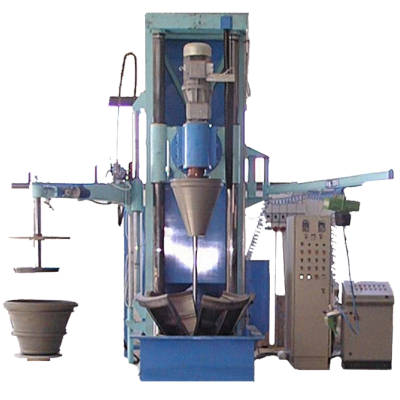

LATHE AND UNDERCUT PRESSES
HYDRAULIC PRESSES

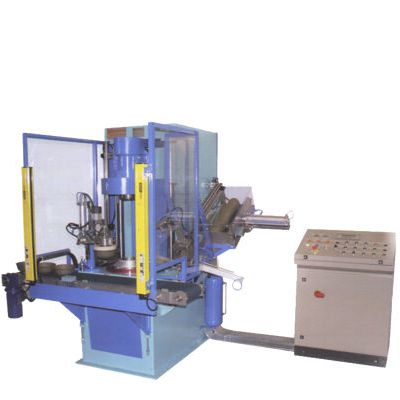

ROTARY HYDRAULIC PRESSES

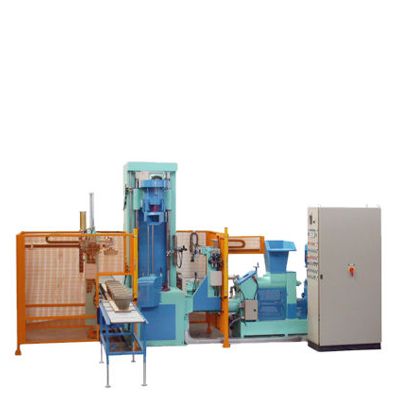

COMPLETE PRODUCT LINES
Our machinery is capable of producing the following items:
Tableware (glasses, plates, vases, trays, soup bowls, etc.), flower pots and jars (from 5 cm to 100 cm), bricks, tiles, and roof tiles.
We are here to answer any questions you may have about our products and to stay in touch with you.
